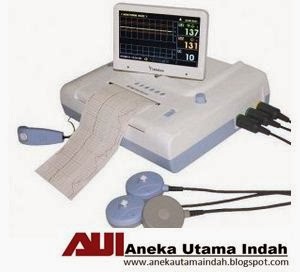

CTG Fetal Monitor BT-350LCD

Type : Fetal Monitor Dual 7' LCD Color 'waterproof Probe (Twin Baby ) BT-350 LCD
BT-350 LED has the same functions as LCD thpe except having large 7-segment LED showing all the setting parameters and not having trend mode.

It has also event marker enabling a pregnant woman in the bed to indecate fetal movement point by pushing the button herself when she feels fetal movement.

BT-350 indicates FHR as numeral by irradiation ultasound at the adbomen, abstraching doppler frequency of heart beat cycle from the signals reflected from fetal heart, outputting FHR change as a sound, and analyzing these signals.

Besides, you can measure UC by using pressure sensor.
BT-350 prints FHR, UC and FM on thermal paper and displays them on the LCD display.
Especially, the doppler probe has 9 crystal sensers for catching FHR effectively, and it is water-proof type.

BT-350 has 2 kinds of installation functions such as notebook, and wall mount.

-7 inch wide TFT color LCD display
-Up to 150 patients data saving.
-Fetal heart sound play and record in PC
-Rotating screen.
-Multiple language support
-Built-in quick guide (LCD Type)
-Waterproof probe

Features :
● BCM-330/BCM-350 (PC interface-central monitoring system)
● Remote control up to 8 monitors
● Wire(RS-232C) and wireless(Bluetooth) connection
● Network system by Lan connection(BCM-350 only)
● Remote real-time picking-up fetal heart sound(Patent)

Specification :
  • FHR
    ● Dual Pulsed Doppler
    ● Ultrasound Frequency : 0.985MHz
    ● Intensity : 10 mW/cm² or less
    ● FHR Range : 30 ~ 240 bpm
    ● FHR Accuracy : ±2% of Range
  • FM : Auto-detection of Dual Fetal Movement
  • UC
    ● External Type
    ● Frequency Response : DC ~ 0.5 Hz
    ● Reference (zero) Contral Measurement Range : 0 ~ 99 units
  • Printer
    ● Thermal Array Type - Print Speed : 1, 2, 3 cm/min, high speed
    - Print Speed : 1, 2, 3 cm/min, high speed
    - Auto Record Period : Off, 10, 20, 30, 40, 50, 60min
    - Paper Feeding Function
  • Display
    ● 7'' Wide TFT-Color LCD : 800(W) X 480(H) - Rotating by 270' : LCD Type 3Channels (FHR I, FHR II, UC)
    ● Large 7-segment & Volume LED : LED Type - Rotating by 270' : LED Type
  • Sound
    ● Doppler Sound
    ● Alarm Sound
    ● Information Sound
  • Set-up
    ● Alarm Upper / Lower Value, Time & Date
    ● Print Speed
    ● Trend [Data Saving for 450 hours(3hr/Person)] , Name ID
  • Function
    ● Mark Function
    ● Display/Printer Zoom-in Function
    ● FHR II Offset Function(DOP II+20bpm)
    ● Auto Print Function
    ● Auto Saving Function
    ● Heart Sound Recording in BCM300 & BCM350
    ● Fetal movement print function
    ● Multi-Language & quick guide function : LCD Type 1ea(Option)
  • Power
    ● Input : AC 100 ~ 240V (50/60 Hz)
    ● Output : DC 16V, 2.8A
    ● Consumption Battery Operation(Option)
  • Dimension : 80mm(H) X 350mm(L) X 280mm(D)
  • External Link
    ● Wire : RS-232C
    ● Wireless : Bluetooth
  • Standard Accessory
    ● Ultrasound Dopper water proof Probe 2ea
    ● UC Probe 1ea
    ● Event Marker 1ea
    ● Print Paper 2ea
    ● Power Cord 1ea
    ● Ultrasound Gel 1ea
    ● Probe Belt 3ea
    ● Operation Manual 1ea
    ● Probe holder 2ea
  • Warranty : 2 Years (probe excluded)
  • Trend : Data saving for 450 hours (3hr/Person) : LCD Type
  • Optional Accessory :
    ● AST(Acoustic Stimulator)
    ● Bluetooth & Antenna
    ● Rechargeable battery
    ● Wall mount bracket
Harga BT-350LCD : Rp.  38.500.000,-
 CTG Print Paper for BT-300 : Rp. 300.000,-

NOTE : SEMUA BARANG YANG KAMI JUAL BERGARANSI SERVICE SELAMA 1 TAHUN
DAPATKAN DISKON & HARGA SPESIAL DENGAN MENGHUBUNGI :
Hendra (085245551655 / 085286819888 / 021-36445679)
Email : anekautamaindah@yahoo.com
